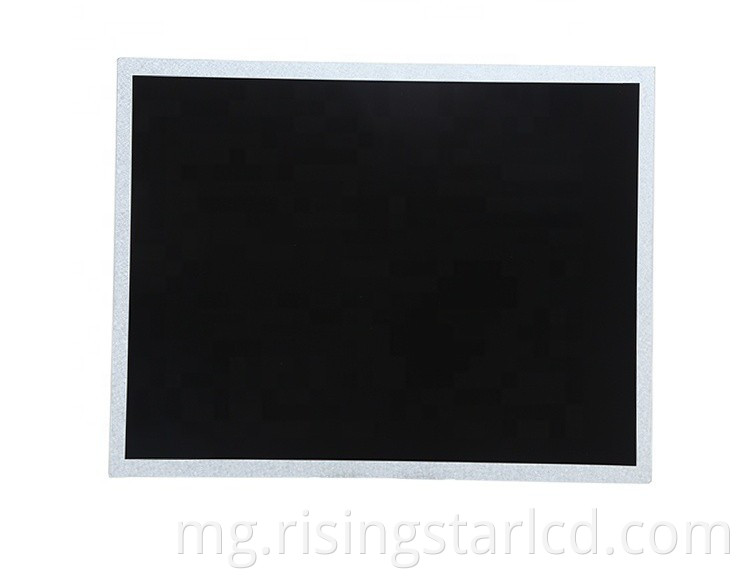

15 "High hazavana avo lcd tontonana 1500cd / m2
1. Fampidirana
Izy io dia loko mavitrika mpikirakira mavitrika (TFT) Crystal Crystal Crystal (LCD) izay mampiasa ny Silicon Silicon Amorphous ho fitaovana fanodinana. Izy io dia ahitana ny tontolon'ny TFT LCD, rafitra fanamboarana, mpamily tsanganana ary mpamily row. Ity TFT LCD ity dia manana faritra 15.0-santimetatra ao anaty paositra misy fizarana mavitrika miaraka amin'ny vahaolana (1024 horizontal amin'ny 768 pikantsary pikantsary pikantsary).
2 endri-javatra
15.0 "TFT LCD Panel
LED SCOMCLight RightLight
Tohanana 1024x768 pikantsary pikantsary
Mifanaraka amin'ny fenitra Rohs
|
Size |
15inch |
|
Resolution |
1024*768 |
|
Pixel Pitch (H x V) |
0.297 x 0.297mm |
|
Pixel Arrangement |
R.G.B. Vertical Stripe |
|
Display Mode |
Normally White |
|
Brightness(nits) |
1000-1500 |
|
Contrast Ratio |
800:1 |
| Input Voltage | 3.3V |
| View Angle(L/R/U/D) | 80/80/80/80 |
| Response Time(ms) | 16ms |
| Optical mode | TN |
| Operating Temperature | -20-70° |
| Storage Temperature | -30-80° |
| Interface | LVDS/8-bit |
| Lamp type | LED |
| LED Life Time(Hrs) | 30,000Hours |
| Active Area(mm,H*V) | 304.13*228.10 |
| Outline Dimension | 326.50*253.50*12.00 |
|
Weight |
960g |
|
Support Color |
16.2M |
|
Optimum Viewing Direction |
6 o’clock |
|
Surface Treatment |
Anti-glare, Hard-Coating (3H) |
|
Authentication |
ROSH/UL |
| Size | 15inch |
| Panel item | RS150NET-N15 |
| Panel type | a-Si TFT-LCD |
| Display mode | IPS,Normally black，transmissive display |
| Pixels | 1024*768 |
| brightness | 1500cd/m2 |
| Constrast Ratio | 800：1 |
| View angle | 80/80/80/80 |
| View area | 313.55*2378.25mm(H*V) |
| Dispaly area | 304.128*228.096mm(H*V) |
| Outline Size | 326.5*253.5*10mm(H*V*D) |
| Signal Type | LVDS |
| Working freqyency | 60Hz |
| Working temperature | 0- 65.0ﾟC |
| Storage Temperature | -20- +65.0ﾟC |
| Backlight Type | WLED |
| Display color | 16.7m |
| Surface Treatment | Haze ,Hard coating(3H) |
| Drive-screen Voltage | 3.3V |
| Backlight Power Consumption | 13w |
| Weight | 1kgs |
